Demonstrating RAP mixes

Cargill is partnering with the National Center for Asphalt Technology (NCAT) in Auburn, Alabama, and the Minnesota Department of Transportation’s MnROAD program in Albertville, Minnesota, to determine how to best implement performance-engineered mix design procedures, especially in mixes containing rejuvenators and high levels of reclaimed asphalt pavement (RAP).

“We believe it’s time for the asphalt industry to look beyond recipe specifications and focus more on real-world results,” says Rob Neumann, global category leader, Cargill. “Investments in research and development have yielded advances in asphalt technology, but industry standards haven’t always kept pace.”

Neumann says that results from the multi-year NCAT and MnROAD trials will help state agencies gain confidence in performance-based testing. As part of the project, the researchers will compare blacktop made with Cargill’s Anova rejuvenator and a 45-percent RAP mix to control sections paved with a lower RAP mix, measuring factors such as pavement ride quality, cracking, and rutting. By conducting parallel testing at both the NCAT test track and MnROAD test highway, scientists will be able to monitor results in both northern and southern climate extremes.

Demonstrating RAP mixes

TWO TESTING LOCATIONS

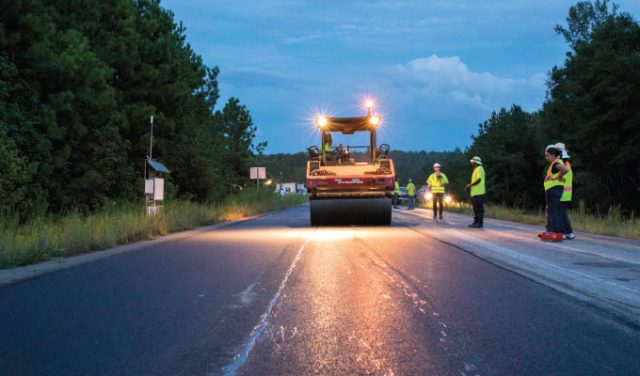

Mix design began earlier this year, as researchers from both facilities conducted extensive laboratory analysis on preconstruction samples. In early September, NCAT paved a 200-foot-long section of its 1.7-mile oval pavement test track with the Anova/high RAP mix. There, engineers are evaluating the performance-engineered asphalt mix using an accelerated pavement testing protocol, subjecting the section to 10 million equivalent single-axle loads (ESAL) or about 10 years’ worth of traffic, in only 2 years. The NCAT test is being conducted in cooperation with the Virginia Department of Transportation.

The MnROAD project, slated to begin near the middle of September will cover two approximately 500-foot sections of the test highway. It’s being done in conjunction with the Minnesota Department of Transportation, which owns and operates the testing facility, and CRH/Hardrives. Both test locations will conduct ongoing laboratory testing and field monitoring as they work to utilize various performance engineered design protocols, while also assessing potential practical quality control tests that can be used when constructing pavements using such designs.

“We know many state agencies are looking for advances in asphalt that deliver demonstrable performance benefits,” says Hassan Tabatabaee, global technical manager for road construction, Cargill. “With this research, we’ll be able to equip state agencies with well-controlled, real-world data on new design principles, especially when used with rejuvenators and high RAP mixes, giving them greater confidence in adopting these research-based quality control tests.”

BENEFITS OF HIGH RAP MIXES

Increasing the recycled content by just 20 percent on a typical 5,000-ton resurfacing project saves 48 trucks of virgin aggregate, 1,000 tons of recycled asphalt storage costs, two trucks of liquid asphalt, along with the carbon emissions generated by all those trucks. However, while these rejuvenator/ high RAP asphalt mixes deliver on critical sustainability, cost management, and performance criteria, they don’t always meet long-standing, ingredient-based requirements.

“Rather than relying on a specific ‘recipe’ to deliver performance, we need to be evaluating our asphalt mixes based on measurable factors like durability and workability,” Tabatabaee says. “Developing and adopting research-based quality control practices will enable agencies to speed adoption of innovations like high RAP/rejuvenator mixes, providing them with reliable data to more effectively evaluate new technologies based on actual results.”



For more information:

For more information about the National Center for Asphalt Technology (NCAT) and its testing center at Auburn University in Alabama, visit www.ncat.us.

____________________________________________________________________
Modern Contractor Solutions, September2018
