At World of Concrete 2025, Instagrid turned heads as a portable power supply that delivers grid-like performance. The Instagrid GO 36 DV delivers a rated power output of 3,600W and a peak power output of 18,000W in a lightweight and compact design.

This portable solution brings electricity with zero local emissions anywhere you need it, making a wide range of work applications easier and more efficient. With its advanced battery-based technology, contractors can enjoy silent, uninterrupted power on site without the limitations and frustrations of conventional generators.

The Instagrid system is suitable for use indoors or outdoors in all weather conditions (IP 44 rating). The unit can be carried in one hand (44 lbs.) and minimizes trailing cables and extension cords to reduce trip hazards.

The system also recharges quickly from a standard 15A / 120V supply in under three hours.

EXPANDABLE POWER

If you need more power capacity, more Instagrid units can be connected together in a daisy-chain fashion. Instagrid LINK is a smart power distributor that extends the features of your portable power supply and enables new and powerful applications. Combine Instagrid GO units for up to three times the power capacity. Hot-swap the units seamlessly for extended run times without the hassle of generators or extension cords.

With a single system, you can set up a mission-critical power supply with no interruptions. Power up to three devices with RCD-protection without noise or exhaust fumes throughout the entire job. Use any AC electrical equipment with a suitable plug.

MOBILE TRACKING

The Instagrid app provides fleet management from your phone or mobile device to enhance convenience, data accessibility, and safety. This app provides in-depth unit information so you can monitor run-time, state of charge, temperature, and location of the Instagrid unit(s).

This connectivity also enables users to track the real-time location of the Instagrid unit(s) to improve job scheduling and theft prevention.

With a quick overview, users can see the status of all their Instagrid products at a glance. The aggregated statistics about the Instagrid fleet can help contractors keep track of energy consumption and sustainability metrics.

WORLD OF CONCRETE DEMO

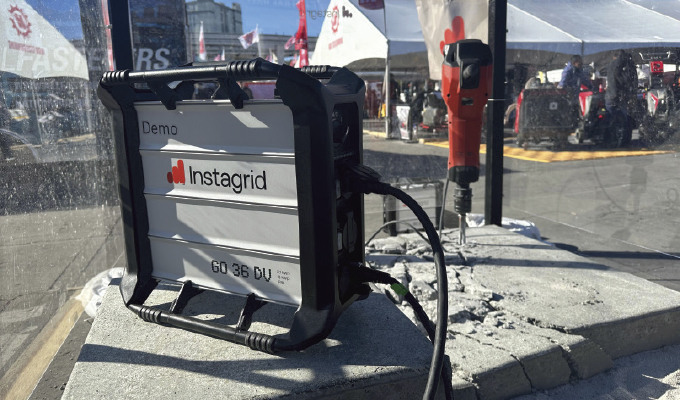

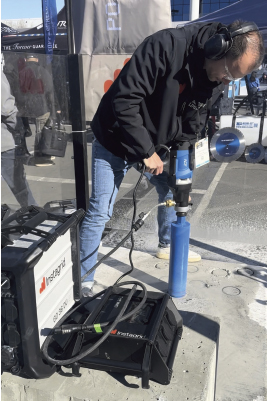

To demonstrate its versatile power-supply capability at the recent World of Concrete convention, Instagrid sponsored an elaborate display area with representatives operating such commercial-grade tools as breaker hammers, masonry wet-saws, and core drills all powered by the Instagrid units.

Here’s a look at some performance estimates of commercial power tools powered by an Instagrid GO 36 DV.

  • Demolition Breaker (6 inch), 2,200W: 8 tons of concrete slabs demolished
  • Arc Welding Machine, 3,000W: up to 89 electrodes
  • Cut-off Saw (4-inch depth of cut), 2,700W: 38 cuts on cast iron pipe
  • Diamond Core Drill (6 inch), 3,300W: 32 holes in concrete
  • Concrete Mixer, 600W: 48-gal. barrel; 11.5 tons of concrete
  • Construction Table Saw, 3,000W: 4,100 cuts through 2×4 lumber
