G-Series

John Deere is adding to its best-in-class G-Series motor grader lineup with the addition of two models—the 620G/GP and 622G/GP. On display at CONEXPO-CON/AGG 2017, the 620G/GP and 622G/GP are designed for cities, townships, and contractors that prefer lighter and more fuel-efficient graders on the job. The Moline-based manufacturer is also adding a dual joystick option on all Grade Pro (GP) models, along with ripper-stow automation, courtesy lighting, and an updated high-resolution reverse camera monitor, which are new to all G/GP models.
“Our G-Series lineup is all about offering contractors and governmental customers the grader of ‘choice,’ allowing them to choose the right machine for their application. Customers asked for a lighter and more fuel-efficient grader, and the 620G and 622G answer the call,” says Luke Kurth, product marketing manager, motor graders, John Deere Construction & Forestry. “We’re enthusiastic about the new dual joystick option as well. Now operators and owners can select from the traditional antler rack mechanical controls, interchangeable GP fingertip controls or dual joysticks, whichever they prefer and are most productive with—all while retaining the steering wheel.”
FUEL-EFFICIENT FINAL TIER 4
Both the 620G and 622G boast the fuel-efficient Final Tier 4 6.8L John Deere diesel engine with 215 horsepower and 225 horsepower, respectively. The generous horsepower, torque, and blade pull deliver the power and lugging ability to get through tough spots. The operating weights of the 620G (40,350 pounds) and 622G (42,060 pounds) are ideal for applications requiring smaller graders. Eco mode, standard on all John Deere graders, helps optimize fuel usage, decreasing operating costs by an additional 5 to 10 percent compared to the larger 670G and 672G models.
OPTIONS AND UPGRADES
The new dual joystick option provides intuitive control for operators who prefer joystick control to the standard antler rack. Hand motion is minimized during direction changes and gear shifting. In contrast to the competition, this option provides improved comfort of controls by eliminating the need to “twist” for blade circle or articulation.
Other updates to the G-Series line include the addition of a 7-inch, high-resolution reverse camera monitor that provides a clear picture to the operator when reversing around obstacles. Standard courtesy lighting turns on the machine lights as the operator exits the machine at the end of the day, which is especially important in dark conditions. On GP models, ripper-stow quickly returns the ripper to its fully raised position at the end of pass simply by double-tapping the control.

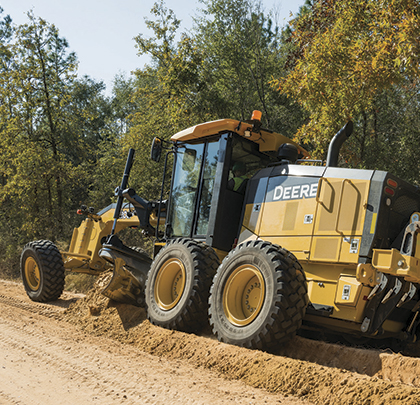

Featured Image: John Deere 620GP
Above: John Deere 622GP
The G-Series features eight models (620G/GP, 622G/GP, 670G/GP, 672G/GP, 770G/GP, 772G/GP, 870G/GP, 872G/GP) with net horsepower ranging from 215 to 300. Four of the units—the 622G/GP, 672G/GP, 772G/GP, and 872G/GP—feature six-wheel drive, enabling them to power through the toughest cuts with power flowing to all wheels. Six-wheel drive gives operators increased traction, the ability to get more work done in fewer blading passes, and a 30-percent increase in blade pull.
The John Deere “open-architecture” design lets customers employ their favorite brand of grade-control system. GP models come factory-equipped with bulkhead connectors, sensor mounts, electrical wiring harnesses, integrated controls, and moldboard mast mounts. Machines can also be factory-installed with Topcon, Trimble, or the new Leica ready kits to make installation quick and easy. All GP models come standard with automated cross-slope.
ULTIMATE UPTIME
Fleet managers looking to get the most out of their G-Series motor graders can rely on their John Deere dealers to provide Ultimate Uptime, featuring John Deere WorkSight. With Ultimate Uptime, owners receive predelivery and follow-up inspections that include 5 years of JDLink™ telematics, machine health prognostics, remote diagnostics, programming capabilities, and the ability to add dealer-provided uptime solutions to create a customized package.
DEERE & COMPANY
Deere & Company is a world leader in providing advanced products and services and is committed to the success of customers whose work is linked to the land—those who cultivate, harvest, transform, enrich, and build upon the land to meet the world’s dramatically increasing need for food, fuel, shelter, and infrastructure. Since 1837, John Deere has delivered innovative products of superior quality built on a tradition of integrity. ■
For More Information:
For additional information and model-specific specifications on the G-Series motor graders, contact your local dealer for a demo, or visit www.johndeere.com.
